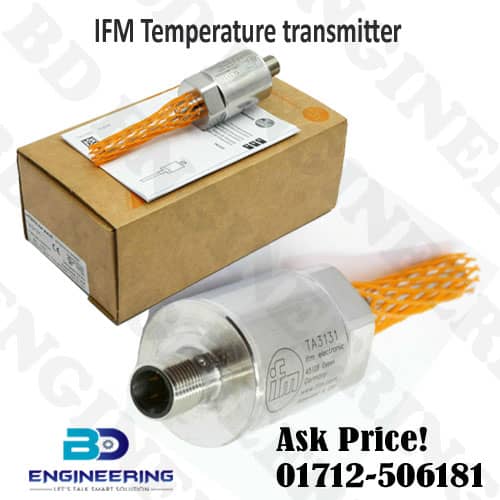

High precision Sensors TA3131 price in BD? Temperature transmitter TA3131 IFM High precision Sensors are available in BD. Moreover, the temperature transmitter TA3131 works with TAA060CCDR14-ASIVG/US. Besides, it also has Robust stainless steel housing with a very high-pressure rating and has an AS-i interface. And also High protection rating for all the requirements of industrial environments. High precision Sensors TA3131
High precision Sensors TA3131 price in BD and Specification
| Inputs and outputs No. | 1 |
| Measuring range | -50 to 150 °C |
| Process connection for external thread |
G 1/4
|
| Measuring element | 1 x Pt 1000 |
| Media type |
liquids and gases
|
| Medium temp. °C |
< 150; < 40 min
|
| Pressure rating | 400 |
| Installation depth | 15 min. |
| Operating voltage | 10 to 30 DC |
| Reverse polarity protection | yes |
| Outputs No. | 1 |
| Output signal |
analog signal
|
| Analog current output | 4 to 20 mA |
| load max. | 500 |
| Overload protection | yes |
| Probe length | 46.5 mm |
| Measuring range | -50 to 150 °C |
| Resolution of analog output | 0.02 |
| Precision analog output | ± 0,4 |
| Coefficient temp. | < ± 0,1 |
| Dynamic response | 1 / 3 |
| Ambient temperature | -25 to 70 |
| Storage temperature | -40 to 100 |
| Protection | IP 68 and IP 69K |
| Materials |
stainless steel
|
| Process connection |
threaded connection G 1/4 external thread
|
| Installation length | 60 |
More Information About TA3131
High precision Sensors TA3131. Moreover, the TAA131 temperature transmitter uses the profile for recognizing as a one-channel analog input. So that, the data transfer is started spontaneously. Above all, the measur values of the temperature sensor are convert directly into the physical unit °C. As a result, it is always available without any type of conversion.
