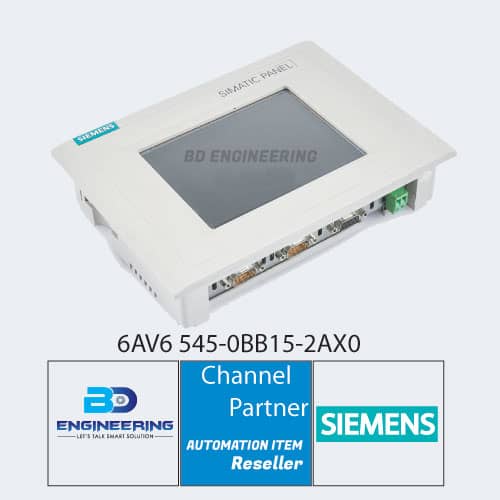

Simatic Touch Panel TP170B Mono color 6AV6545-0BB15-2AX0 Siemens

Simatic Touch Panel TP170B-6AV6545-0BB15-2AX0 Siemens. The Simatic touch panel tp 170b mono-color blue mode stn exhibit mpi/Profibus DP interface printer/rs232 interface slot for cf card configurable with protocol/lite as of version v5.2+sp2 with software version

Technical Features 6AV6545-0BB15-2AX0:

• Operating and monitoring small machines and systems
• Special touch device for SIMATIC S7-200
• Full-graphic 5.7″ STN touchscreen (analog/resistive) Blue mode (4 levels)
• Connection via MPI or Profibus DP cable
• Projection with TP-Designer (STEP7 Micro/WIN Toolbox) Adapter cable RS232/PPI
• PPI is required as well as downloading the programming software

Specification of HMI:

• Display Type: LCD
• Screen Size: 5.7 inch
• Resolution: 320 x 240pixels
• Display Colour: Blue
• Supply Voltage: 24V dc
• Number of Ports: 1
• Port Type: RS485
• Processor Type: 32-Bit RISC
• Size of Memory: 128kB
